If you have read any of the rest of this blog you know we have undertaken once hell of a project! We’re making headway on building the interior lately. Our inside storage is a good ways from the workshop, so every evening I walk up to the barn and start her up and pull her around in front of the shop so we can get to work.  This has gone on all summer until one day it didn’t. Crank, Crank, Crank and no start. Ended up being no spark and a bad HEI distributor (fell apart from age).

I was planning on finishing the interior remodel before messing with the engine because, well it worked fine! But this changed plans. Our choices were to replace with another HEI and get on the road again or be the Guinea Pig and try to run a Fitech System with full spark control on the GMC. We decided on the second option and away we went.

The install itself is very straight forward, total install time was probably about 3-4 hours, a lot of which was spent scratching my head . The thing that took the most time was getting all the parts that are needed, I had to keep running back and forth to grab stuff that I didn’t know I needed. So first things first here are the tools you’re going to need:

  • Standard Socket set
  • Various wrenches and pliers
  • Screw drivers of varying sizes
  • Soldering Iron – (Solder every wire junction!)
  • Solder – (high quality solder please)
  • Crimper (I crimped then soldered all terminals)
  • Heat Gun (for heat shrinking wire junctions)
  • Grinder -(to cut the transmission kick down arm off the fitech)
  • 7/8″ Hole saw – (to mount the 02 sensor in the exhaust)
  • Teflon tape (or pipe dope)- (for sealing the temp sensor)
  • Allen wrenches
  • Drill
  • Self tapping screws



Like I said before my install was plagued with “oh shit I didn’t realize I needed that” so below you’ll find a list of everything that I used to do this install.

  • Fitech 600 HP Kit
  • Mr Gasket 1932 Square bore to quadrajet adapter
  • Fitech Fuel Command Center Kit
  • Carb linkage bushing 1/2 to 1/4 – Mr Gasket 6026
  • Carb linkage stud kit – Holley 20-38 from NAPA
  • 5′ of 3/8″ fuel line
  • Various small stainless hose clamps (Fitech doesn’t include enough for some stupid reason)
  • 1 5/8 -3″ Stainless Hose Clamps (2) to connect the O2 sensor (I’m doing headers later so I opted for the bolt on instead of welding it (temporary) I advise welding the bung to your exhaust)
  • A few feet of different colored wire to extend the wires (I needed red, white, and black)
  • Ring terminals for 18-22 gauge wire
  • Heat shrink wrap 1/4″ or smaller
  • Grommets for bringing the wires through the firewall
  • I went ahead and put in new plugs and wires since I was messing with them anyway.

*If you (like me) still have the stock choke setup, you’ll need a blockoff plate for it (I just made one) available at summit and others. (HERE)

If you opt for timing control you will need in addition to what’s listed above

  • MSD 8566 Pro Billet Distributor (locked out per the instructions in the box)
  • MSD Blaster 2 Coil + the wire to connect it to the distributor
  • Coil Bracket



That list is not as daunting as it looks I promise, but if you gather all of those tools, and all of those parts your install should be pretty smooth and simple!
Onward to the fun stuff!

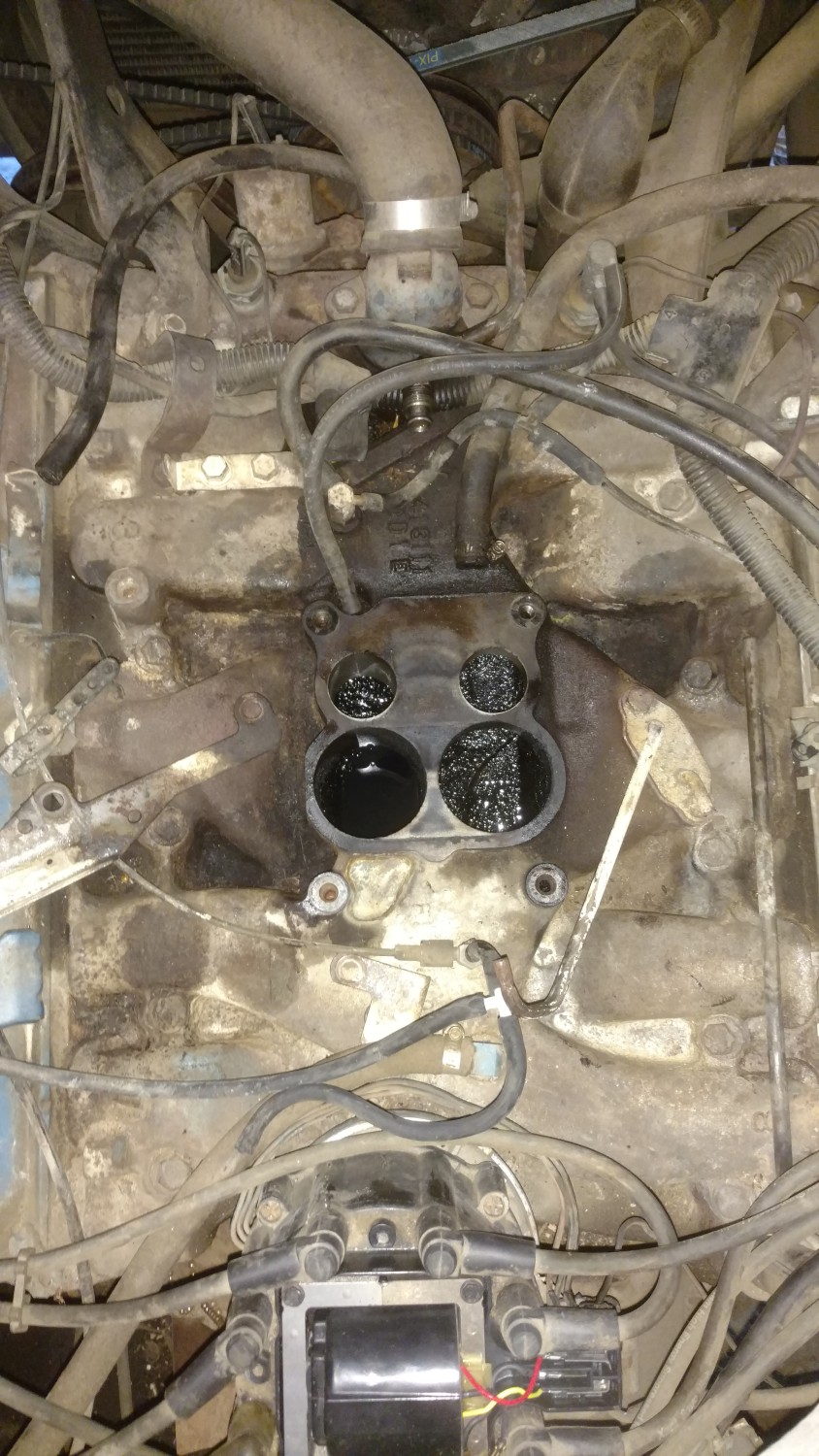

The first thing you’ll do is remove the stock carburetor, pretty simple. Remove the air cleaner and disconnect the fuel line and all vacuum lines going to the carb. Then remove the 4 bolts at the base and carefully remove it from the manifold, being careful to not drop a bunch of gunk into your engine from that nasty carb.


If you still have the stock choke, the heater is to the right of the carb and it needs to go, you can do as I did and make a blockoff plate, or buy one from summit etc. Now is the time to put that on, remove the 2 bolts, remove the heater, carefully remove the old gasket and bolt on the blockoff plate. Easy peasy.

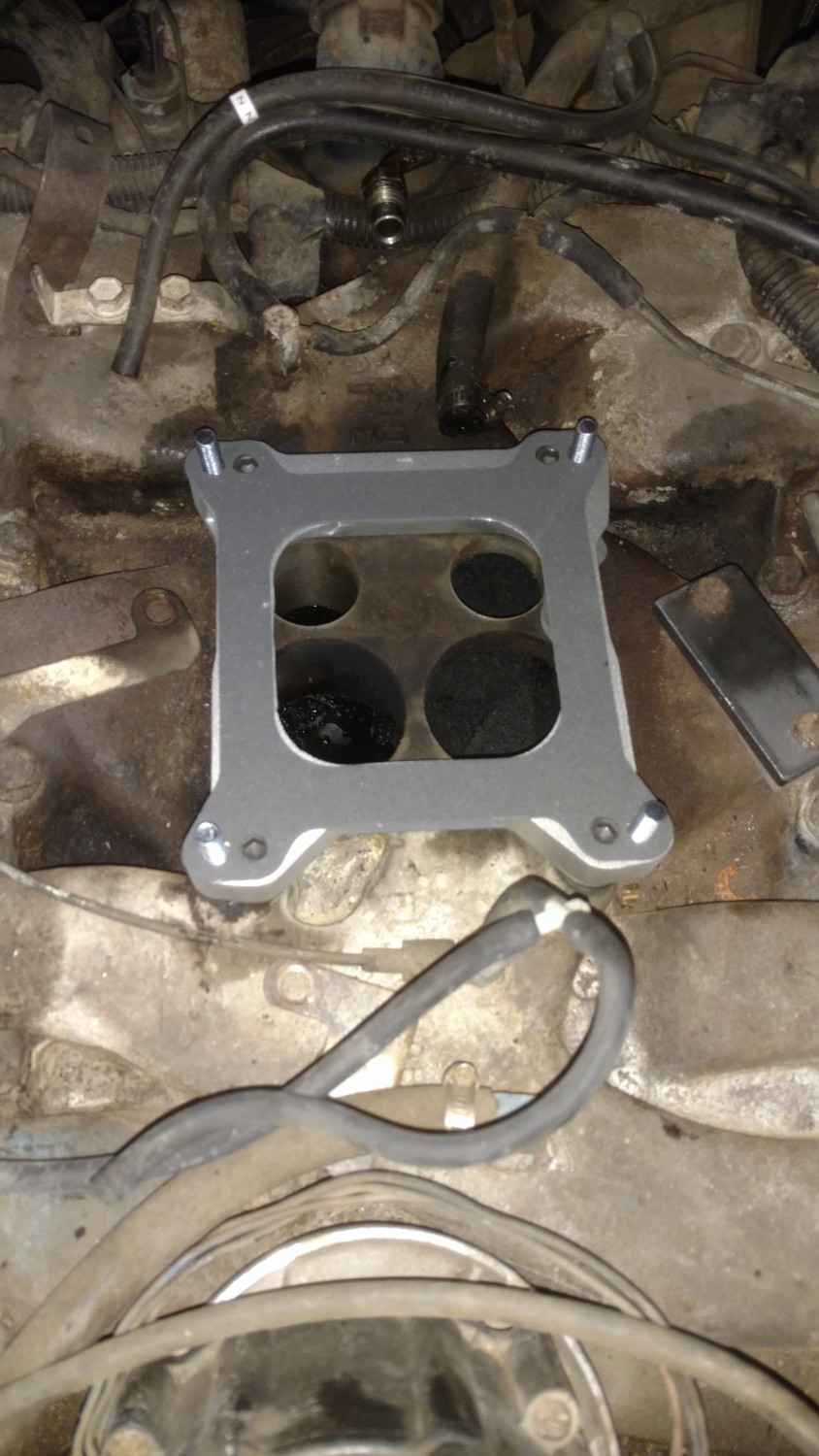

Next up is covering that big gaping hole in your engine that is just asking you to drop tools into it. So install your carb spacer now. This will vary by which spacer you choose, but basically you’ll install bolts from the bottom side and then bolt it on with a gasket. The MR Gasket spacer has a nice curved transition to help smooth the air flow in the transition, and doesn’t cover up any of the intake like some others do.

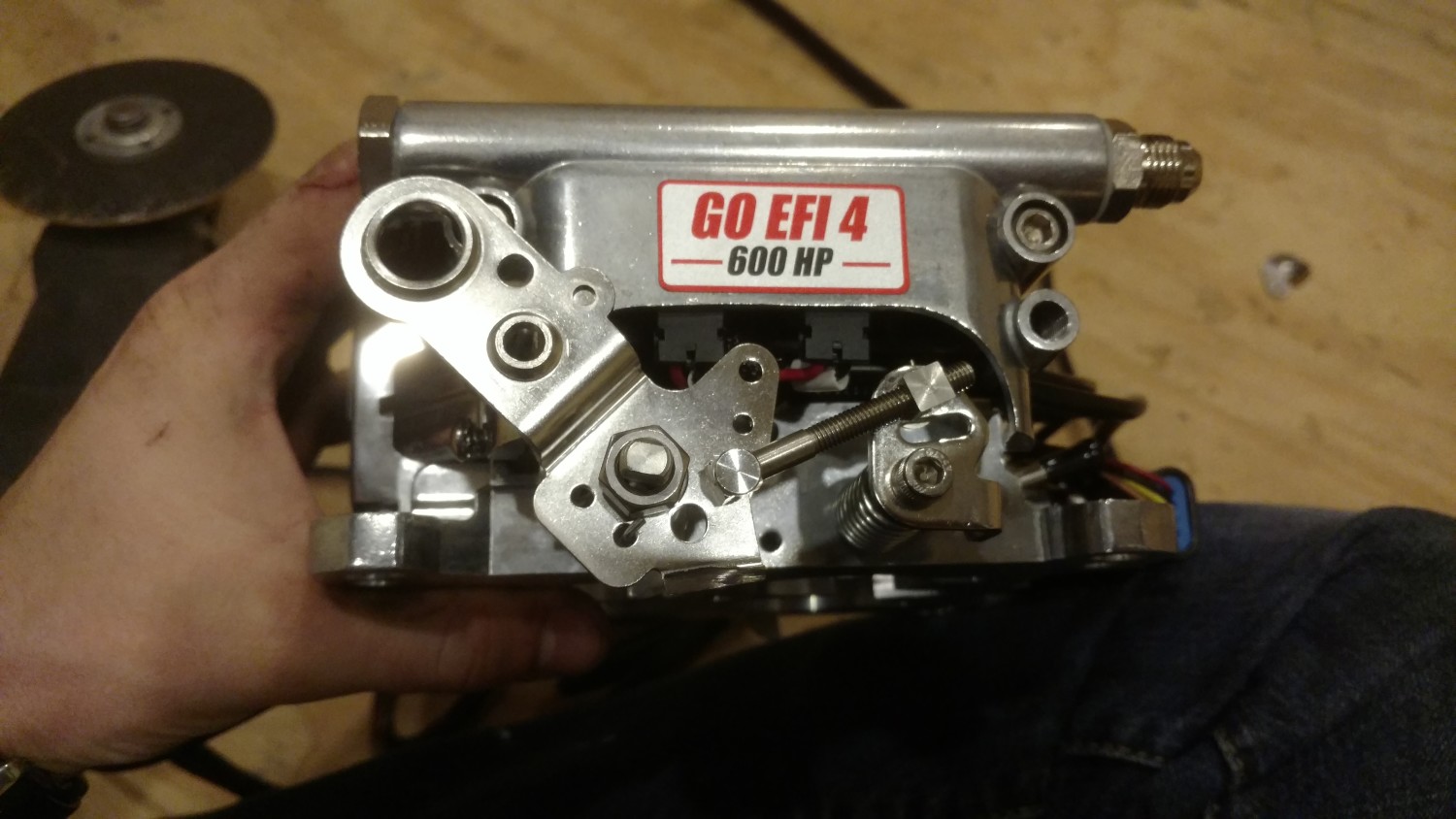

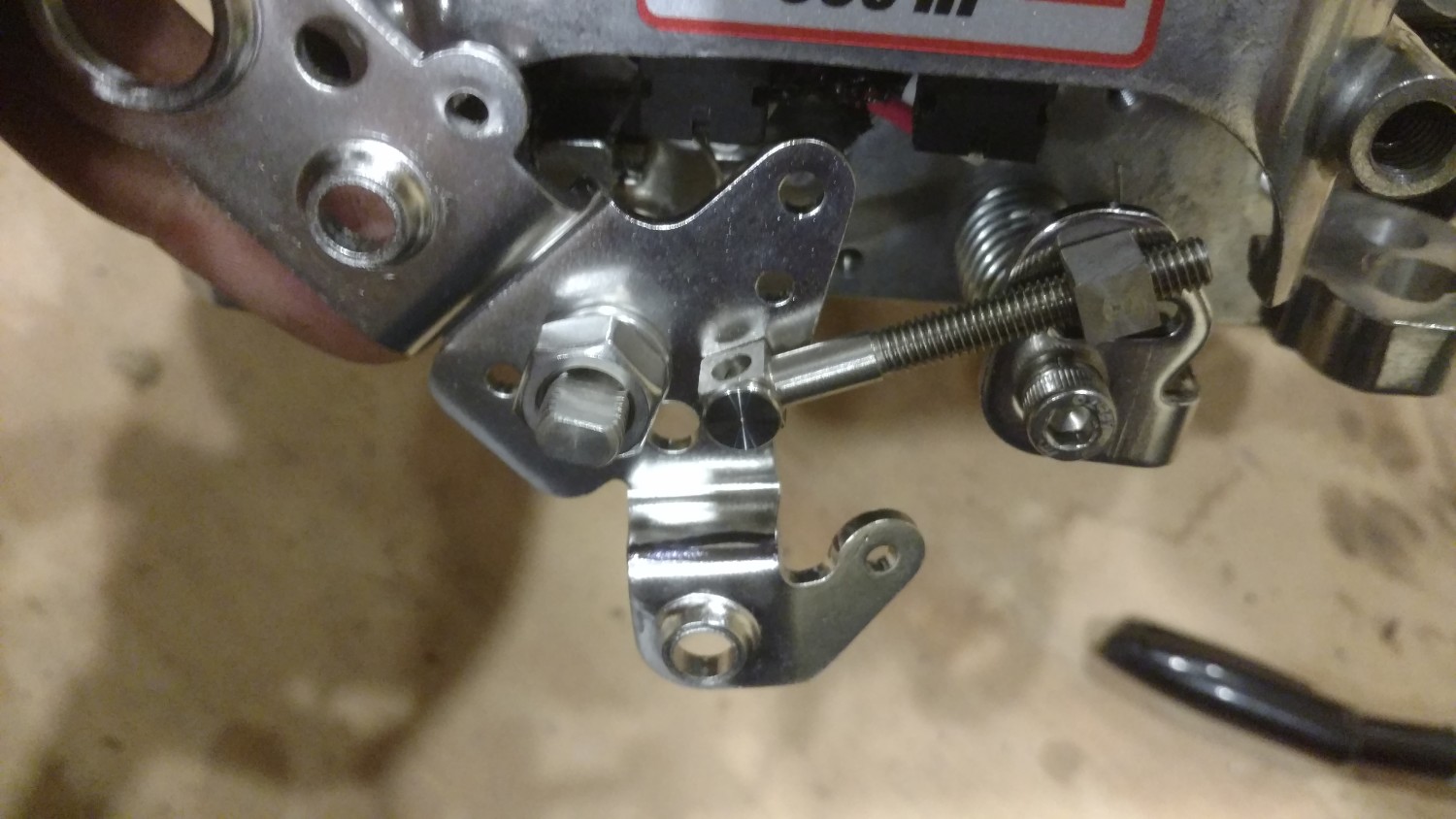

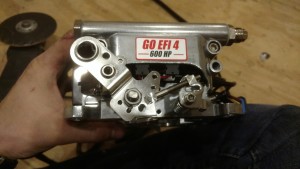

Next up is the install of the throttle body itself, this is as easy as bolting it on, but does require one modification first. The fitech is a universal product, and comes with a transmission kickdown arm on the throttle body. This arm runs right into thee manifold on our GMC’s and has to be cut off. No worries you don’t need it and it’s a 10 second job. Mark it with a sharpie and lop it off with your tool of choice, I used an angle grinder. A dremel will work just as well.

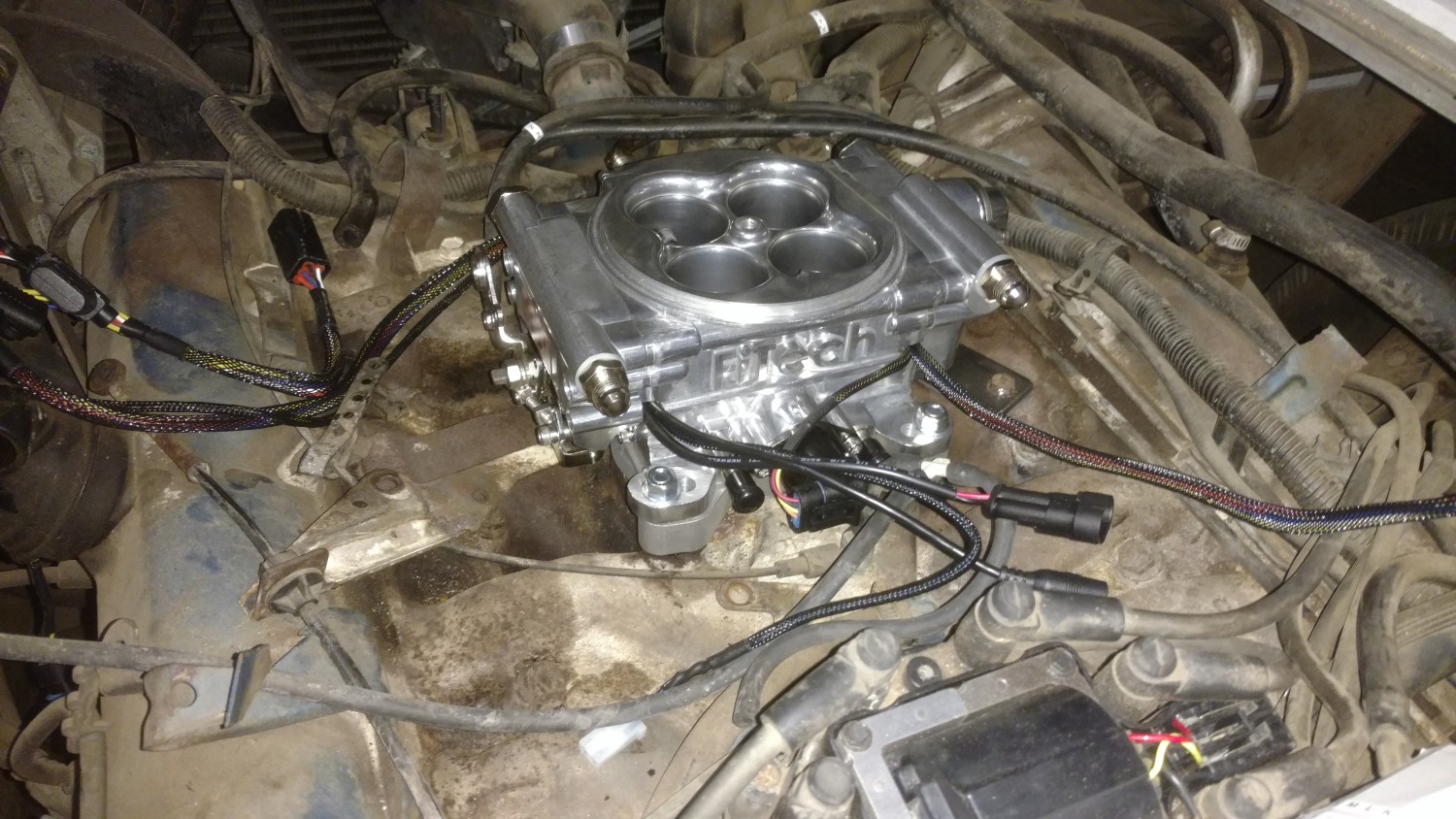

Now bolt the throttle body the the intake to cover that big nasty hole and breathe a sigh of relief that you didn’t lose any tools down there.

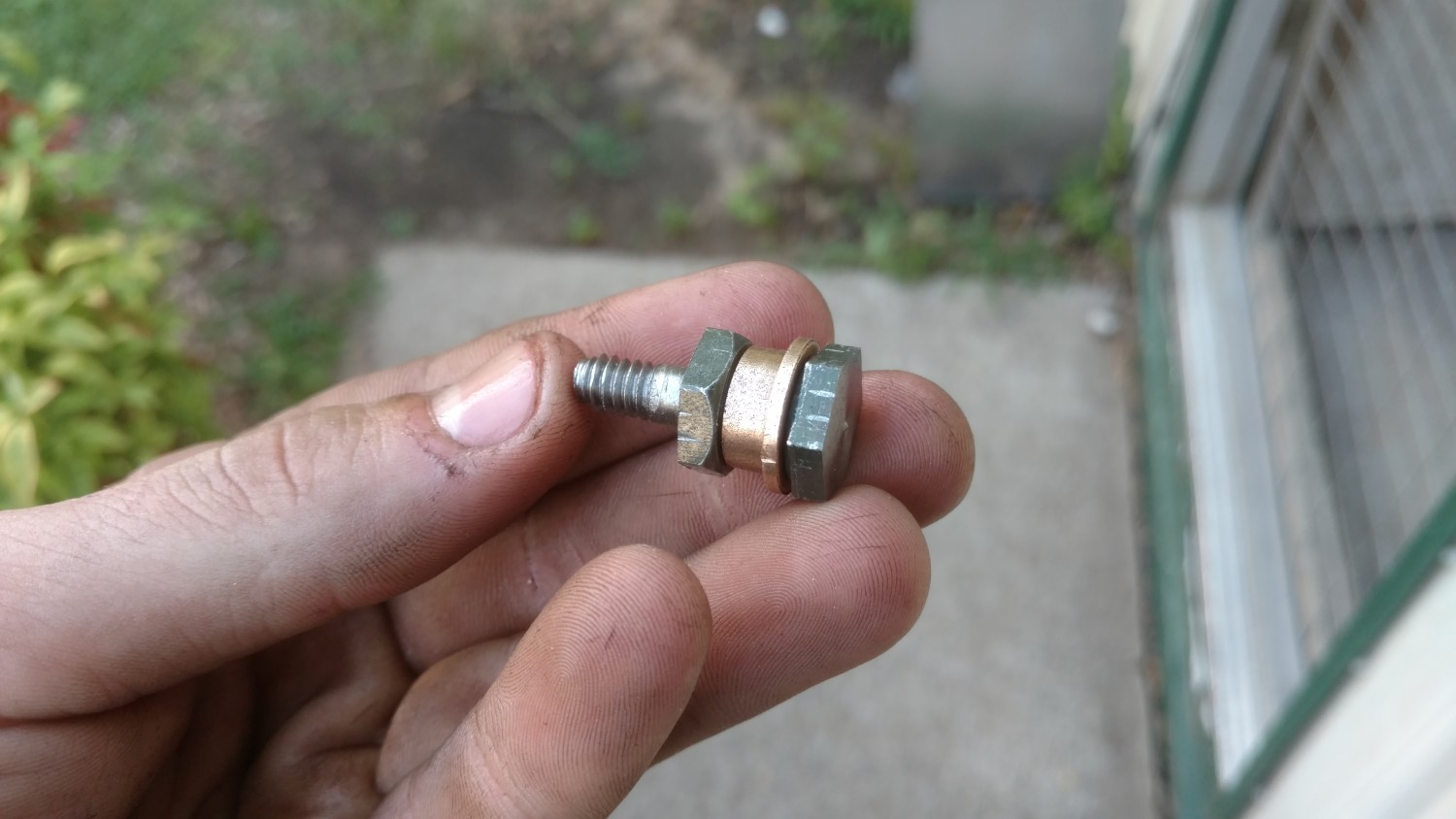

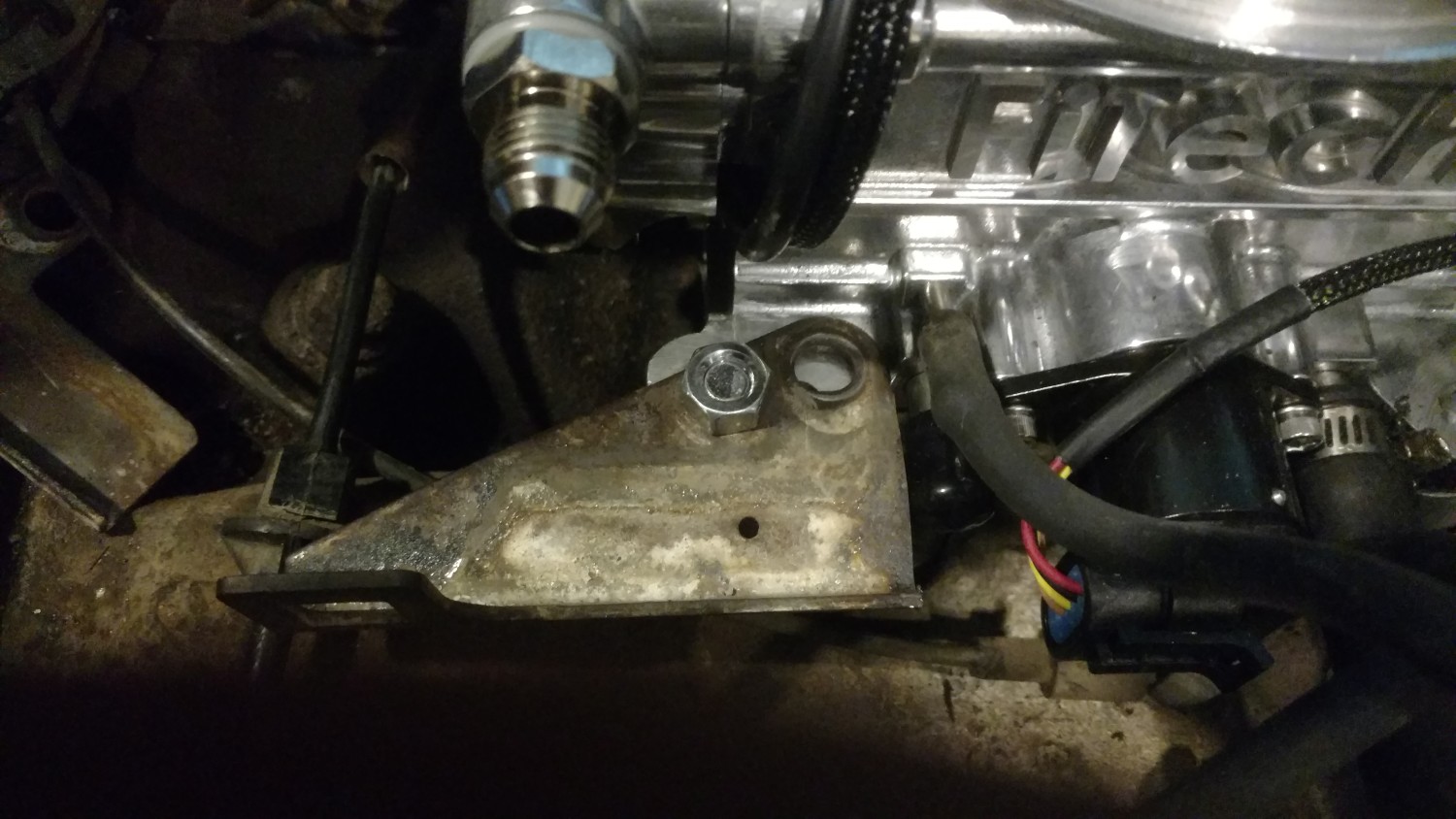

Now is the time to reconnect the throttle cable. I turned an adapter on the Lathe, but the parts required are listed above if you want to go off the shelf. You’ll need to modify the stock throttle holder bracket to bolt to the Fitech, I cut it down a bit with the grinder and bolted it back in place in a way that won’t allow it to pivot. Works fine.

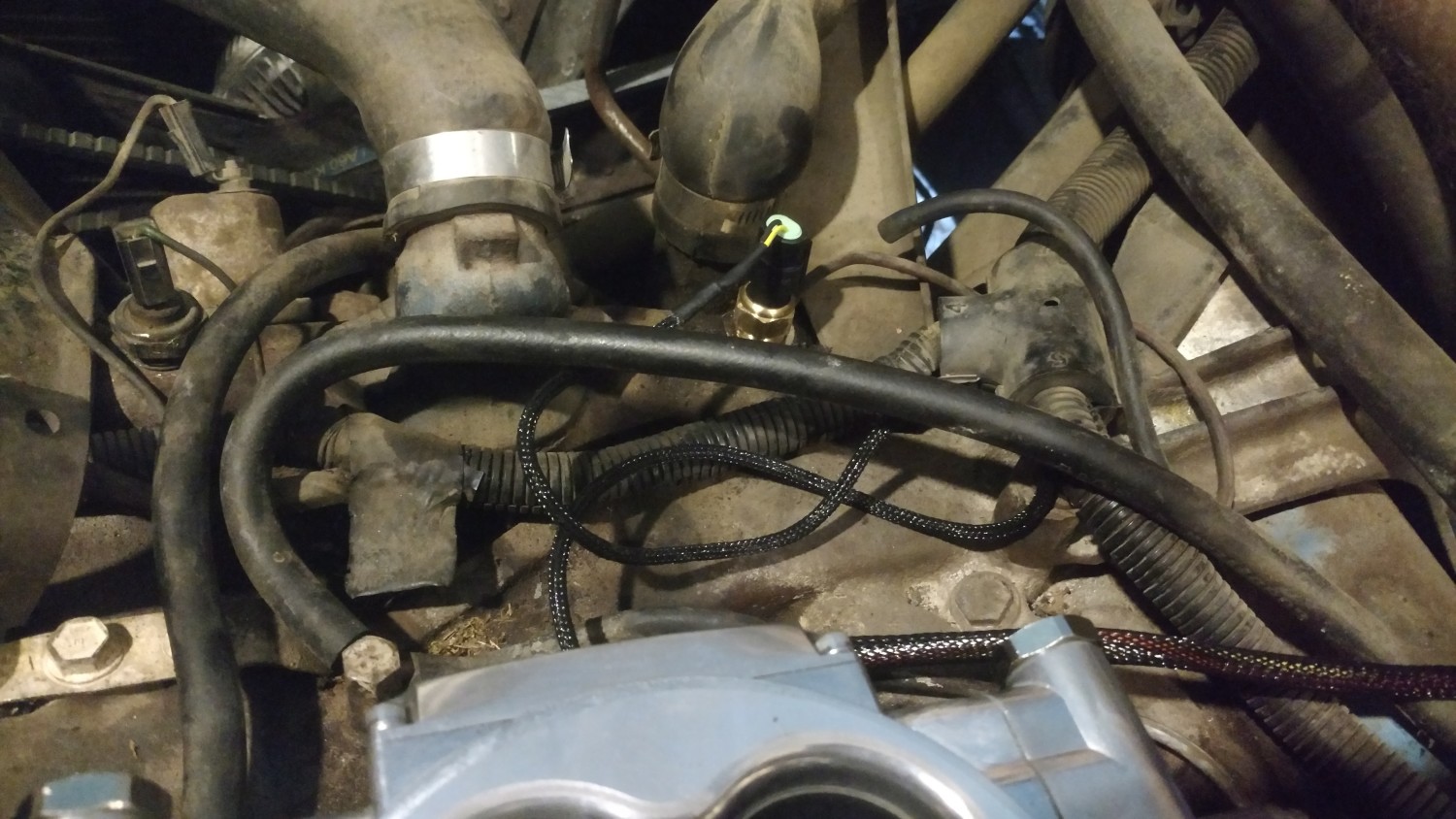

From here you’ll want to install the temp sensor. You can replace the stock temp sensor, but many are still using it (myself included) so there is another option. The Christmas tree TVS Valve is not needed in this application (you can do away with it anyway if you’d like, but you’ll have to rework your distributor vacuum advance. For me using the Fitech for spark there is no need for it at all) so the temp sensor goes there. Make sure to use a quality Teflon Tape on all the fittings, don’t rely on the sealer that’s on it from the factory. You’ll need to install the included 1/2″NPT to 3/8 NPT adapter first and then screw in the temp sensor. Go ahead and connect it to the Fitech.

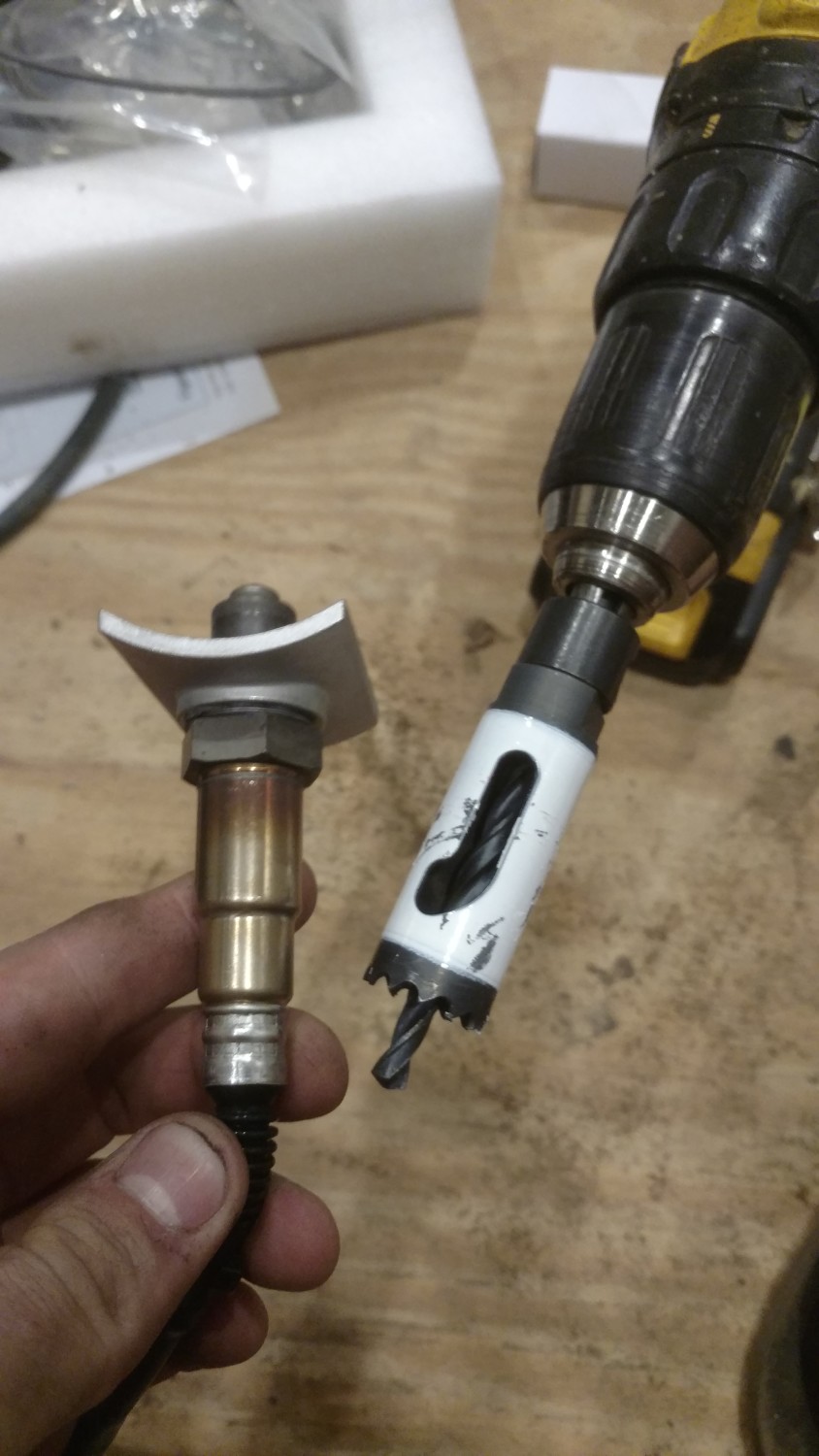

The O2 sensor is next, if needs to be installed in the exhaust just rear of the collector and on the top side of the pipe (greater than 10 degrees above horizontal) I put mine on the driver side as it was easier to get the drill in there to drill the hole. The kit comes with a bung that can either be welded in or clamped on. I’ll be installing Manny’s headers in the near future so I opted to clamp it on for the moment and it does work well) I advise welding the bung in place. Once it’s in connect it and on to the next thing!


At this point if you’re not using the command center you’re all done except for the wiring.

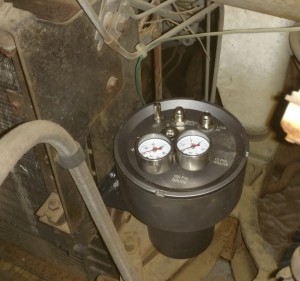

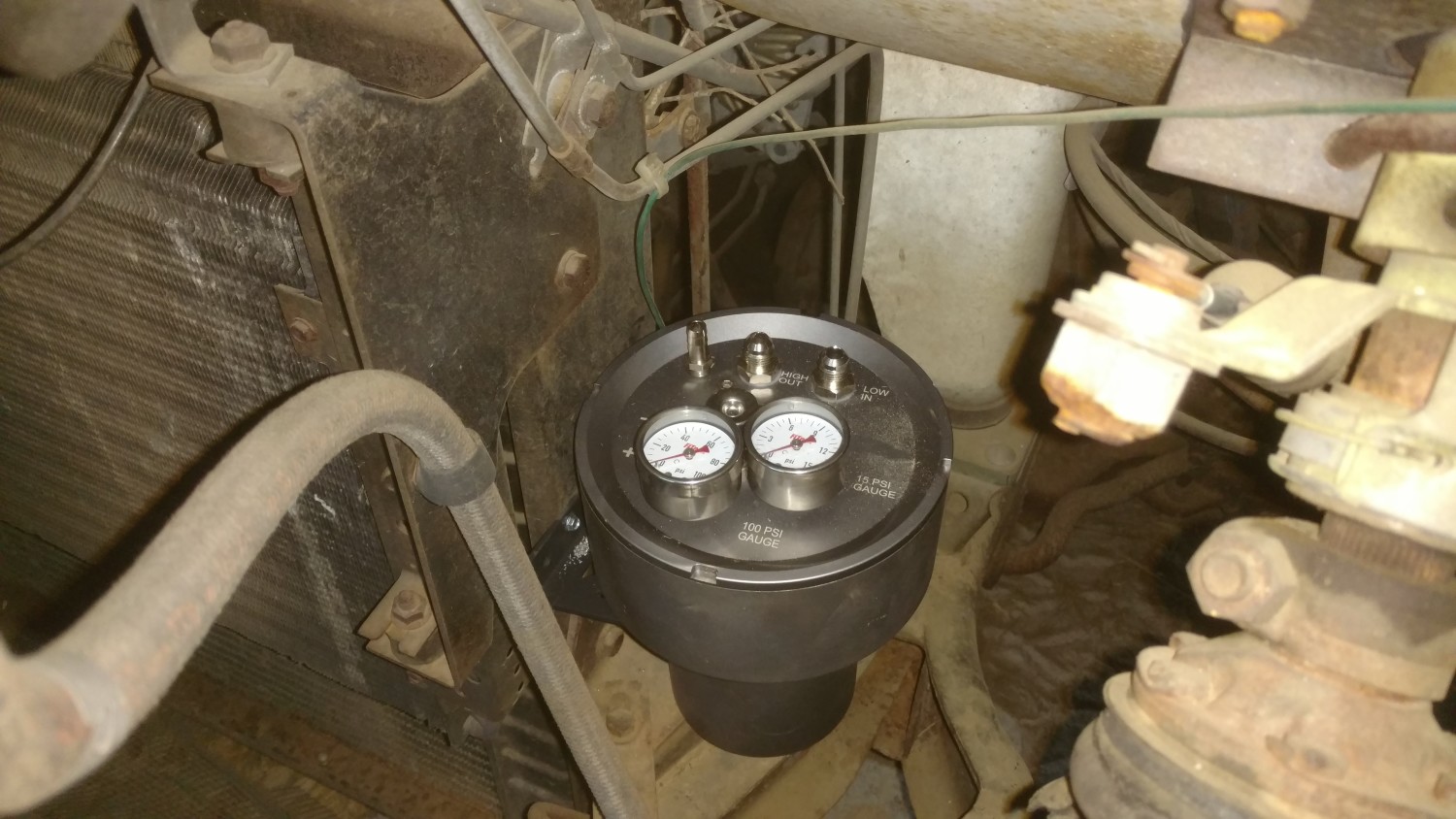

If you’re using the command center you need to find a place to put it, preferably somewhere with some cooling airflow. I’ll leave this up to you, but mine’s on the driver side left of the radiator which after 6000 miles of testing works well. Wherever you decide it’s a simple 4 bolt mount for the CC and then you need to plumb it, it’s pretty straightforward. Standard fuel line from the mechanical fuel pump to the inlet of the CC and then included FI hose and fittings from the output to the Fitech. The fuel injection rated hose is a total bitch to work with, it’s nearly impossible to get the fittings to go into it, I ended up having to clamp the fittings in a vice and use every bit of strength I could muster to get the hose to slide over them. This was the most difficult part of the whole install. After going through that ordeal I realized I could put the end of the hose in boiling water for a moment to make it more pliable!


You will then need to run a return line from the vent on the CC to your tanks. I used 1/4″ fuel line to a 1/4″ hose barb fitting that I drilled and tapped into the filler neck. It’s about a 5 minute job and completely worth the effort.

And that’s about it! All that’s left is wiring. You wire the red wire to the battery +, the orange wire goes to the command center +, and the white wire goes to a switched 12V+ source.
I (and fitech) highly recommend soldering all of your connections. Use a linemans splice to lengthen the wires and crimp on ring terminals on the ends and then solder the wire in after crimping. The only ground you need is a good engine ground and the ground the command center. I went to the frame and have had no issues.

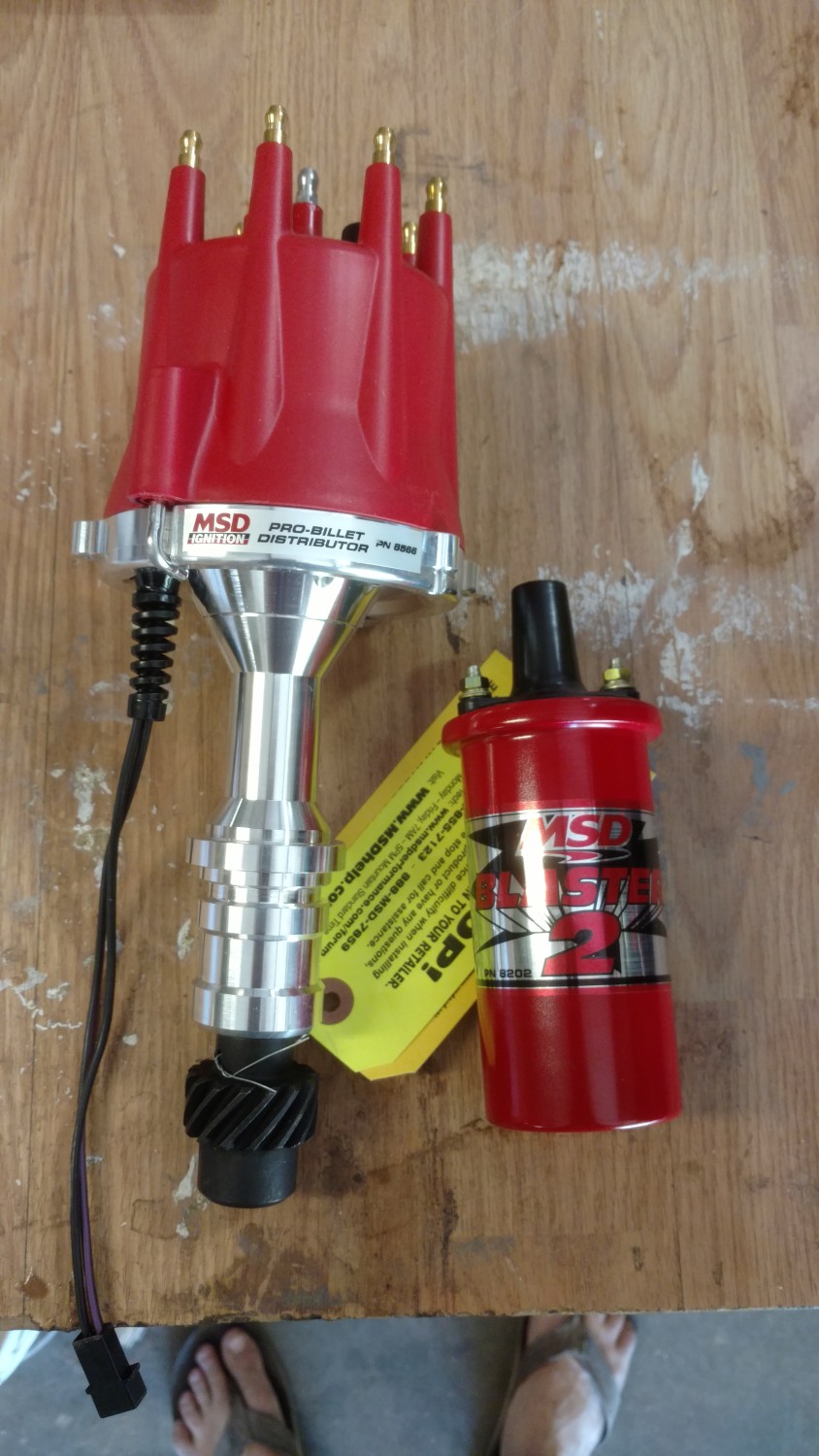

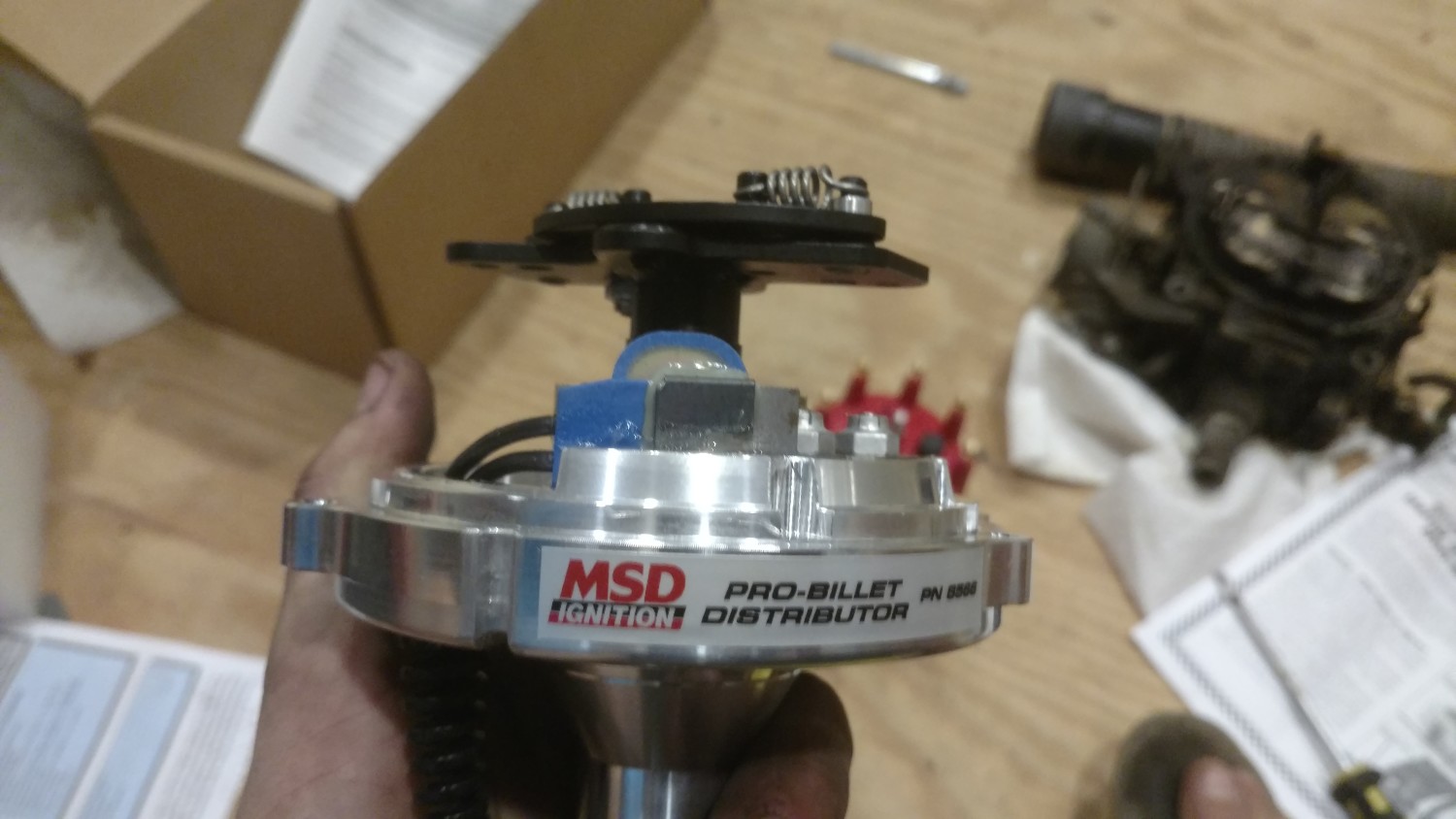

I decided to also add the ability to control the spark. For this you just need a MSD Pro-Billet distributor and a coil, I chose the blaster 2 on Fitech’s recommendation.

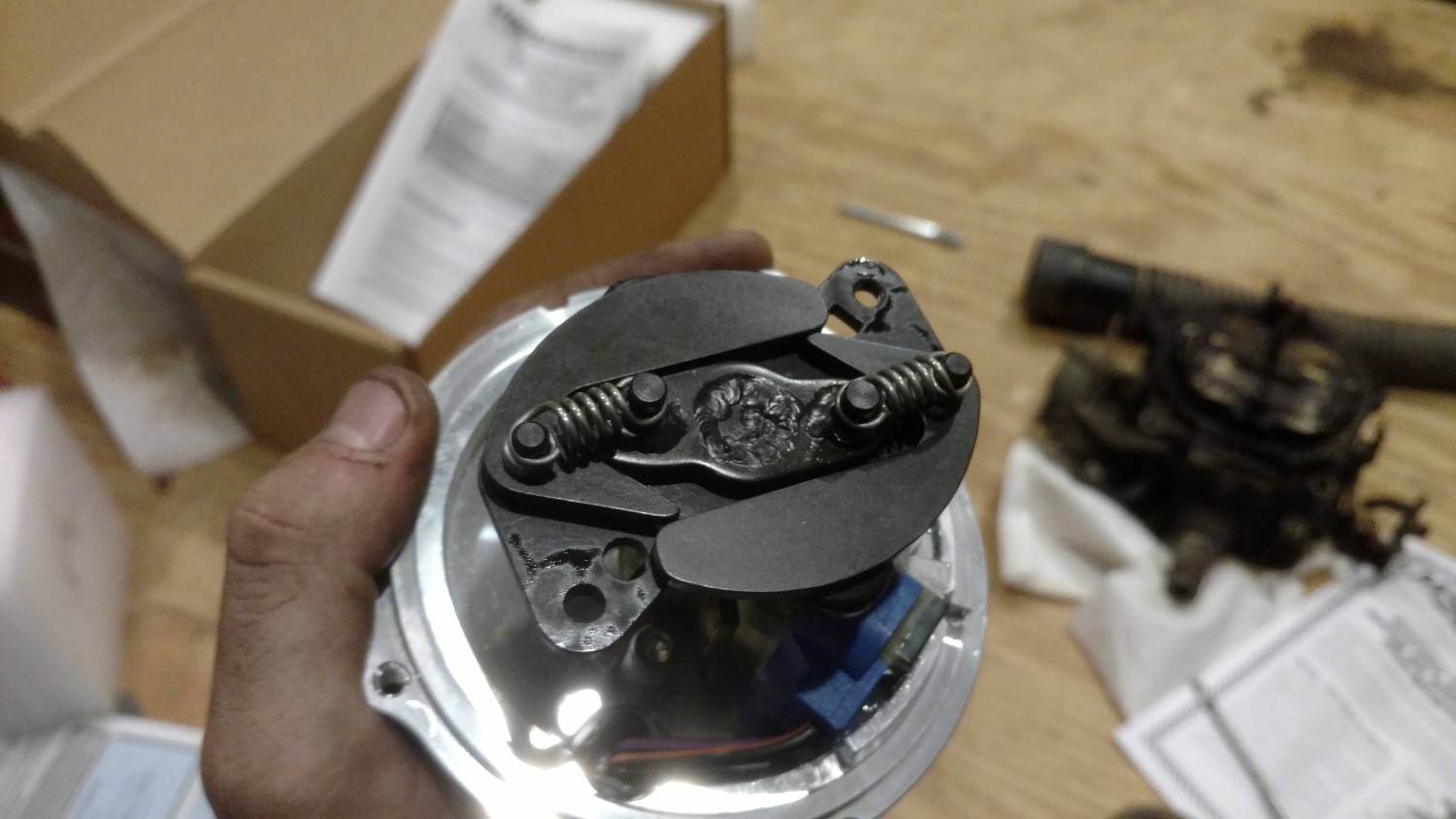

You’ll need to lock out the advance, which is explained fully in the MSD manual, no surprises there.

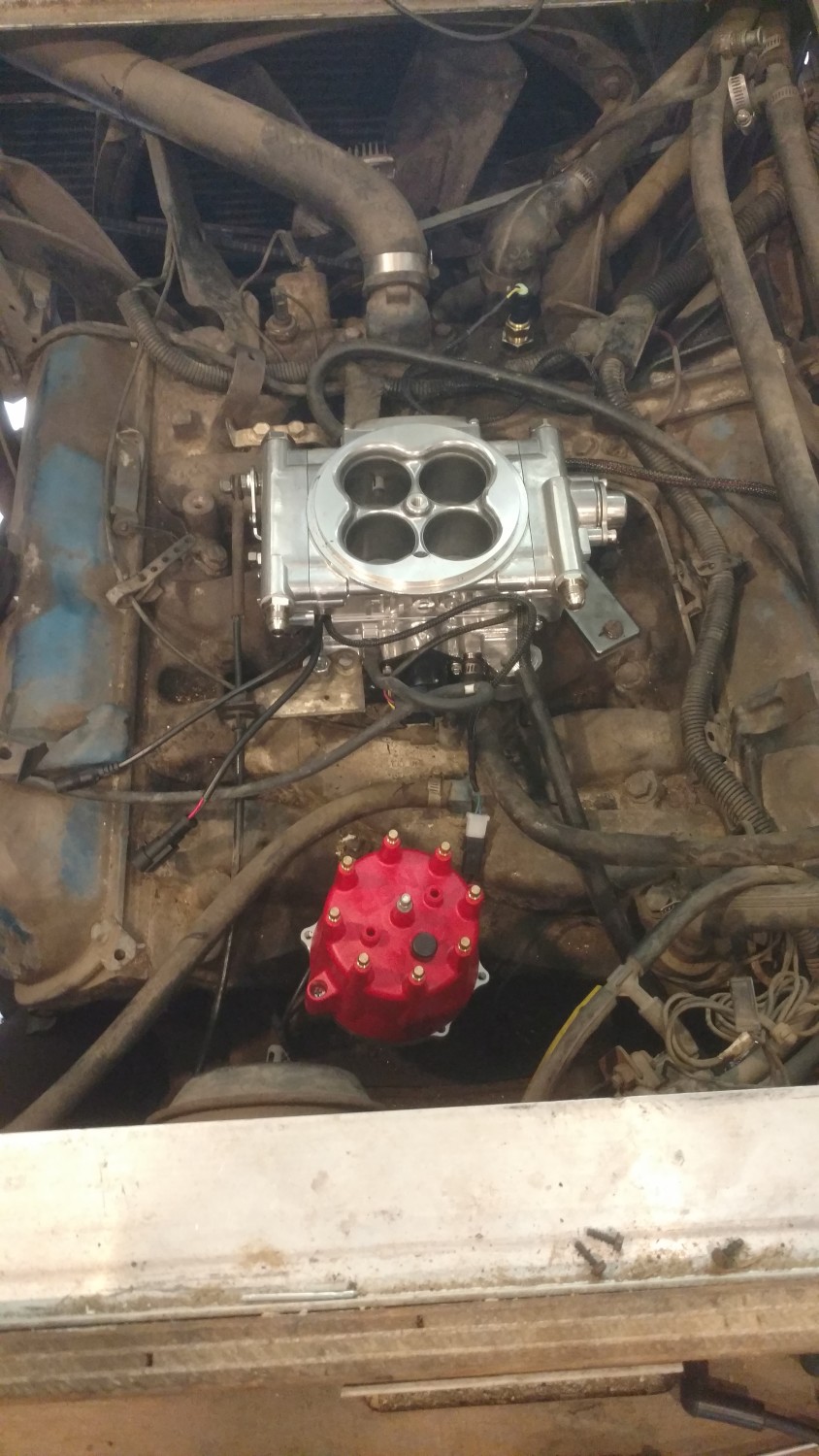

Swap the dizzy just like you would any other, mark the location of the rotor, pull the old and put the new in the same spot. Easy as that.


I had one hell of a time removing the old dizzy, it took a lot of PB blaster, a lot of hammering and levering to get it out. I actually broke it in half before it came loose.

Once the MSD is in you’ll want to set the engine to your base timing. So turn the engine by hand  (1 1/8 socket on the harmonic balancer bolt) until the timing mark lines up with 8 degrees on the marker. From here line the magnetic pickup in the MSD up with the sender and lock it down. All of this is in the fitech instructions and there’s no difference for out GMC’s.




FIRE IT UP!

Follow the Fitech instructions here and setup the handheld controller for our engines. Change the PWM setting for the command center if you’re running it. (LINK HERE)

Once you’ve double checked and triple checked all your connections it’s time to crank her up. Mine started within 1 second of cranking, yours may take longer or shorter. I primed the command center with my low pressure electronic fuel pump beforehand so that helped. It’s been a joy so far!

Whether your air cleaner will fit or not is going to depend on your coach, they are all a little different. Mine did not want to fit, so I replaced the stock filter with a lower profile edelbrock that I got at auto zone. It works fine, I’ll need to plumb valve cover vent into it, but otherwise seems to do it’s job just fine.









Notes from 6000 miles later:

I was absolutely plagued with vapor lock on hot days even with the Command center. After almost pulling my hair out and in an act of desperation while on a 5000 mile road trip I re-plumbed the fuel lines to bypass the mechanical pump AND the engine compartment all together. This completely solved the problem. 6000 miles later and not a single stumble.

The mechanical pump in conjunction with fuel lines running into and out of the engine compartment were adding so much heat to the fuel that it was boiling in the FCC.

DO NOT run a mechanical pump with a fitech fuel commend center. Block it off, or keep it as backup, but run a high quality electric pump (carter) on the frame rail to feed the FCC. This will save you a LOT of hassle down the line.
